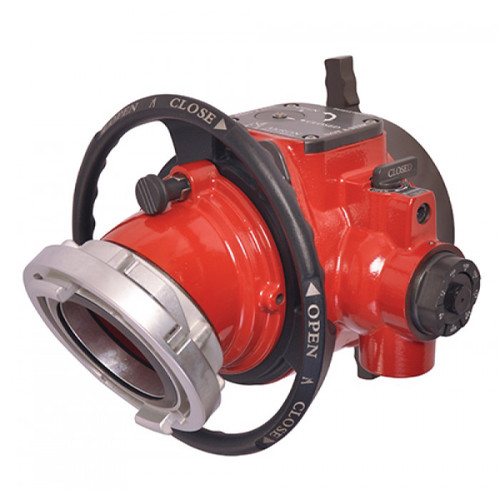

Akron Revolution Intake Valve (Swivel Elbow Inlet)

The Revolution has the standard features you expect from an intake valve—with flows capable of up to 2000 GPM (7600 LPM). The Akron Brass intake valve is ideal for the most demanding apparatus intake applications.

Features

• Swiveling intake elbow with locking pin (30° inlet)
• Robust, integrated, Pyrolite patent-pending handwheel for easy operation
• Critical pump side waterway components constructed of non-corrosive stainless steel
• Durable, powder coated interior and exterior finish
• Optional Storz cap and chain
• Field adjustable relief valve between 50–250 psi (requires 7/8” wrench to adjust). Includes 1 ½” NPT female thread so the hose can be connected to redirect water to a desirable location
• Quick-turn Bleeder valve operation (vents into relief discharge)
• Built-in open/close position indicator on top of valve
• 2000GPM max flow
• All intake valve parts that stay in contact with water are constructed of stainless steel
• Field–serviceable design
• NFPA 1901 compliant
• 10-year, heavy-duty warranty against manufacturing defects and corrosion*

Specifications

Style	7982
Warranty	10 Year Warranty
Weight	40 lbs (18.1 kg)
Material	Aluminum/Stainless Steel
Brand	Revolution
Width	14.25'' (362 mm)
Height	12.3" (312 mm)
Depth	14.9'' (without Storz cap) 15.9" (with Storz cap) (378 mm)
Inlet	Storz*- 4”, 5” or 6”, Full Time Storz Swivel- 4” or 5”, Male-4”, 4 1 /2”, 5” or 6”, Female- 4”, 4 1 /2” or 5” (Storz*- 100, 125 or 150 mm, Full Time Storz Swivel-100 or 125 mm, Male-100, 110, 125 or 150 mm, Female-100, 110 or 125 mm)
Outlet	5" or 6" (125 or 150 mm)
Operating Pressure	250 psi
Flow (GPM)	2000
Flow (LPM)	7600
