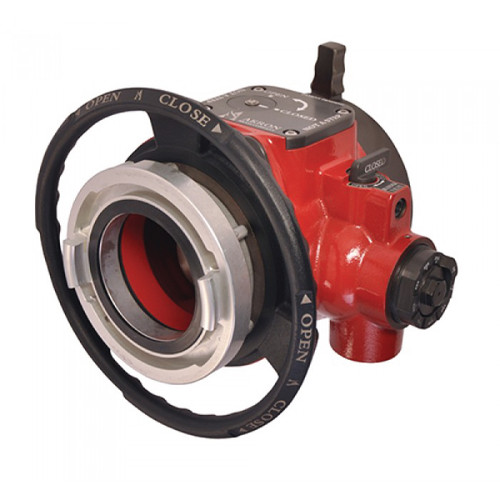

Akron Revolution Intake Valve (Straight Inlet)

The Revolution intake valve features a unique, patent-pending handwheel design. It provides the operator with increased control and leverage for a smooth and easy operating experience. This innovative valve is constructed of corrosion-resistant, hard-anodized aluminum and stainless steel with a powder-coated interior and exterior finish for superior corrosion protection.

Features

• Straight inlet (7983)
• Robust, integrated Pyrolite patent-pending handwheel for easy operation
• Critical pump side waterway components constructed of non-corrosive stainless steel
• Durable, powder coated interior and exterior finish
• Optional Storz cap and chain
• Field adjustable relief valve between 50–250 psi (requires 7/8” wrench to adjust). Includes 1 ½” NPT female thread so the hose can be connected to redirect water to a desirable location
• Quick turn Bleeder valve operation - vents into relief discharge
• Built-in open/close position indicator on top of valve
• 2000 GPM maximum flow
• All intake valve parts that stay in contact with water are constructed of stainless steel
• Field-serviceable design
• NFPA 1901 compliant
• 10-year, heavy-duty warranty against manufacturing defects and corrosion

Specifications

Style	7983
Warranty	10 Year Warranty
Weight	38 lbs (18.1 kg)
Material	Aluminum/Stainless Steel
Brand	Revolution
Width	14.25'' (362 mm)
Height	12.3" (312 mm)
Depth	11.75'' (without Storz cap) 12.75" (with Storz Cap) (300 mm)
Inlet	Storz* - 4”, 5” or 6” Full Time Storz Swivel - 4” or 5” Male - 4”, 4 1 /2”, 5” or 6” Female - 4”, 4 1 /2” or 5” (Storz* - 100, 125 or 150 mm Full Time Storz Swivel - 100 or 125 mm Male - 100, 110, 125 or 150 mm Female - 100, 110 or 125 mm )
Outlet	5'' or 6'' (125 or 150 mm)
Operating Pressure	250 psi
