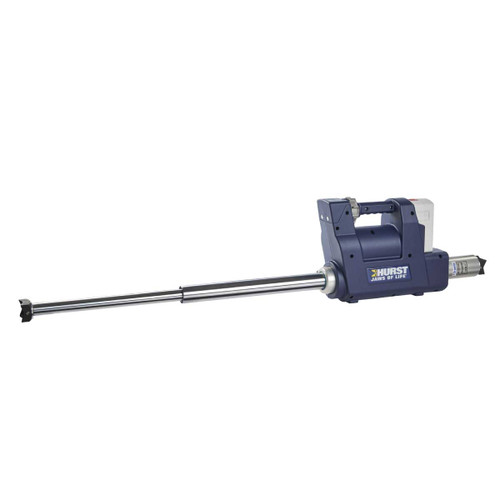

Hurst R 522 EWXT Ram
Details
This new powerful ram can extend up to 59.2 inches in length and gives you room to maneuver wherever you are — even under water. It allows for underwater operation without the need for hoses or power units.
Technical Data
NEED YOUR RESCUE TOOLS SERVICED?
MES specializes in the service and maintenance of your Hurst Rescue Tools to keep your equipment compliant and ready for the task. Our service technicians can inspect and repair Hurst Rescue Tool products on-site with our state of the art mobile service centers.
Contact your local MES sales representative to learn more! 1.877.MES.FIRE.
Territory Restrictions Apply
- Watertight allows you to operate the tool submerged in fresh water
- Brushless DC electrical motor runs more efficiently with higher performance for a longer battery life
- Quieter
- Two LED lights illuminate the front of the tool
- Large waterproof battery (9Ah) with IP68 protection class
- New, faster battery charger
Technical Data
Length Retracted: 24.7 in / 627 mm
Length Extended: 59.2 in / 1,503 mm
Width: 5.51 in / 140 mm
Height: 12.9 in / 327 mm
Weight: 44.8 lbs / 20.3 kg
Stroke Piston 1: 17.8 in / 451 mm
HSF Piston 1: 28,600 lbs / 127 kN
Stroke Piston 2: 16.7 in / 425 mm
HSF Piston 2: 13,500 lbs / 60 kN
Stroke Overall: 34.5 in / 876 mm
NFPA 1936 2020 Compliant: Yes
Tool IP Rating: IP58
