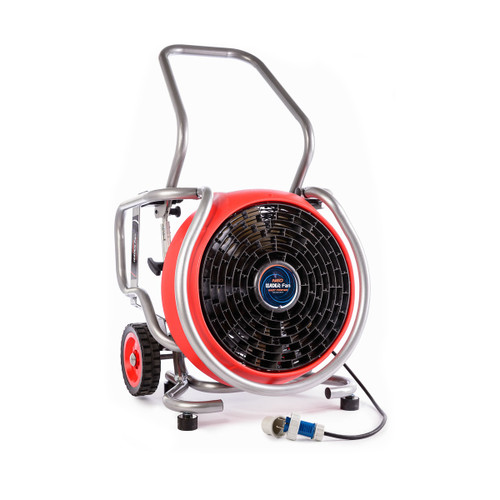

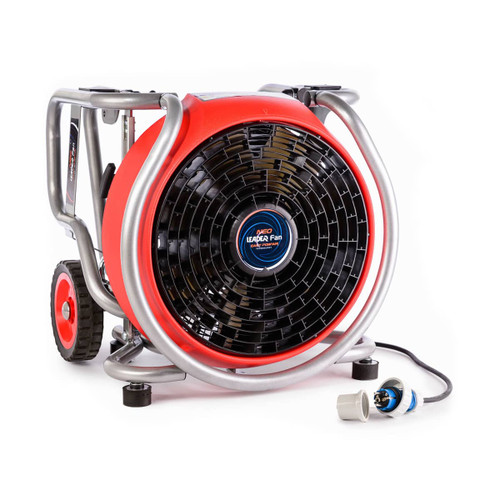

NEO Leader Fan EVG230

A veryconcentrated and ultra-powerful jet of air due to an optimal combination of:

• A high-strength propeller matched to the power of the engine
• A red double-layer monobloc shroud made of reinforced high-density polyethylene
• A high-tech composite grille

Positioning from 3 ft to 20 ft in front of a door without loss of power for:

• more space to move about
• less noise inside the building

Other Features:

• Automatic optimal +10° tilt when handle raised
• Precise tilt adjustment from +10° to +20° for optimization of direction of air stream up entrance steps
• Protective frame with grey epoxy coating
• Stable & easy to handle with large rear wheels
• Compact for easy storage in vehicle trunks
• Open air flow: 17,010 CFM
• Air flow according to AMCA: 11,625 CFM
• Weight: 78.3 lbs
• Dimensions L x H x P: 21.6 x 22 x 19.3 inches
• Propeller diameter: 16.5 inches
• Engine:
• 1.1 kW with variable speed drive GFCI compatible – IP55
• Runs on 15 A circuit breaker and compatible with GFCI circuit breaker
• Power supply: Single phase - 115V±10% 50/60Hz
• Electrical safety: Meets EN 50178 for user safety (leakage current less than 3.5 mA)
• Power consumption in steady operation: 13.9 A
• Mains plug: US male plug – 110 V
• Noise level: 85,2 dB at 10 ft
• Ventilation type: Blowing – VPP
• Application: Single door – houses, small apartment blocks
