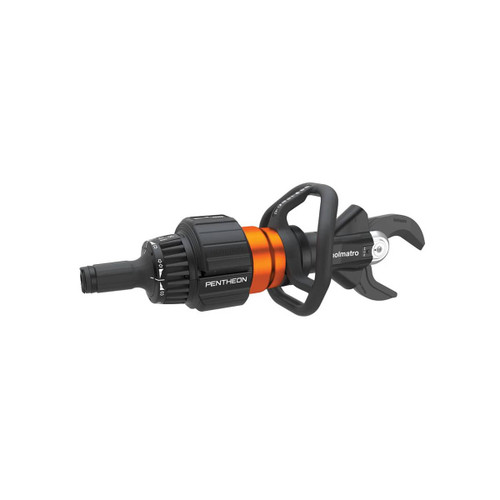

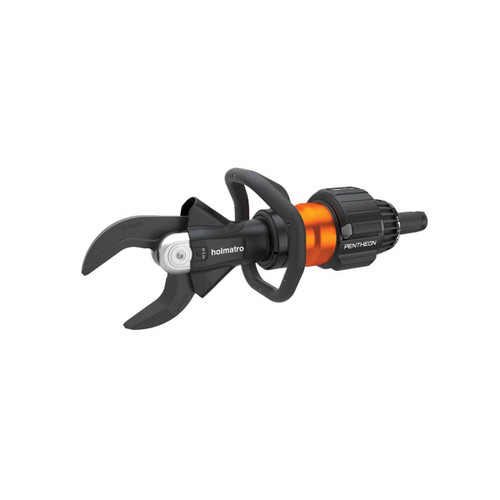

Holmatro Pentheon Series Cutter PCU30CL
Details
Cordless Inclined Cutter, part of the Holmatro Pentheon Series. Designed to offer you unrivaled performance, superior usability, advanced connectivity and exceptional serviceability.
Features
Features
- Fastest cutter on the market thanks to Stepless Speed Maximization (patented) – The tool continuously optimizes its motor and pump settings, giving you maximum speed at any tool load
- Maximum operating flexibility with two operation modes – Reduced speed training/demo mode and high speed Pentheon mode
- Two-speed inline control handle – Switch between high-speed and low-speed and keep perfect control at all times
- Electronic motor control and pressure monitoring – Constant lifetime performance for every Pentheon tool
- Charge batteries directly on the tools with the On-Tool Charging System
- Priority charging for on-tool batteries over batteries on a separate charger
- Charge up to six batteries automatically – Connect up to three chargers to one single outlet
- Holmatro battery – Power Pentheon tools as well as OmniLock struts (patented) and other upcoming Holmatro products
- Easy tool operation on all sides of a vehicle – Inline control handle with 360° access
- Hold every tool in any position – 360° carrying handle made of tough, damage-proof material
- Flawless performance under water, at high and low outdoor temperatures and in rain and snow
- Easier communication during rescue operations – A new and improved drive system ensures tool operation at a lower sound level
- Automatic LED lights in the carrying handle, powered by the main battery. The lights can also be operated manually
- Connect every tool to your tablet or phone with Bluetooth®
- Easy to use and intuitive MyHolmatro app
- Real-time diagnostics during every operation – Monitor battery state of health and state of charge, pump stage, motor temperature, working pressure (including peak pressure) and speed mode
- Quickly and easily perform an automated Pentheon Self Check with the MyHolmatro app – Automatically check the drive system, speed and pressure, battery firmware and battery state of health
| Details | |
| Articlenumber | 151.002.423 |
| Basic specifications | |
| model | PCU30CL |
| max. working pressure | 720/72 (bar/Mpa) 10443 psi |
| battery included | no |
| Performance | |
| max. cutting opening | 170 mm 6.7 in |
| protection rate | IP57 |
| directives | 2006/42/EC, 2014/30/EU, 2014/53/EU |
| theoretical cutting force | 549/56 (kN/t) 123420 lbf |
| General specifications | |
| NCT | yes |
| cutter jaw | inclined |
| Dimensions, weight and temperature | |
| weight, ready for use | 15.2 kg 33.5 lb |
| weight excl. battery | 13.7 kg 30.2 lb |
| dimensions (AxBxC) | 811 x 270 x 288 mm 31.9 x 10.6 x 11.3 in |
| Norms | |
| EN 13204 classification | BC150F-15.2 |
| NFPA 1936, cutting capacity | A6 B5 C6 D6 E6 F2 |
| NFPA 1936 compliant | yes |
| EN 13204, cutting capacity | 1H 2G 3G 4F 5G |
| EN 13204 compliant | yes |
| Cutting performance | |
| round bar (S235 acc. to EN 13204) | 31 mm 1.2 in |
