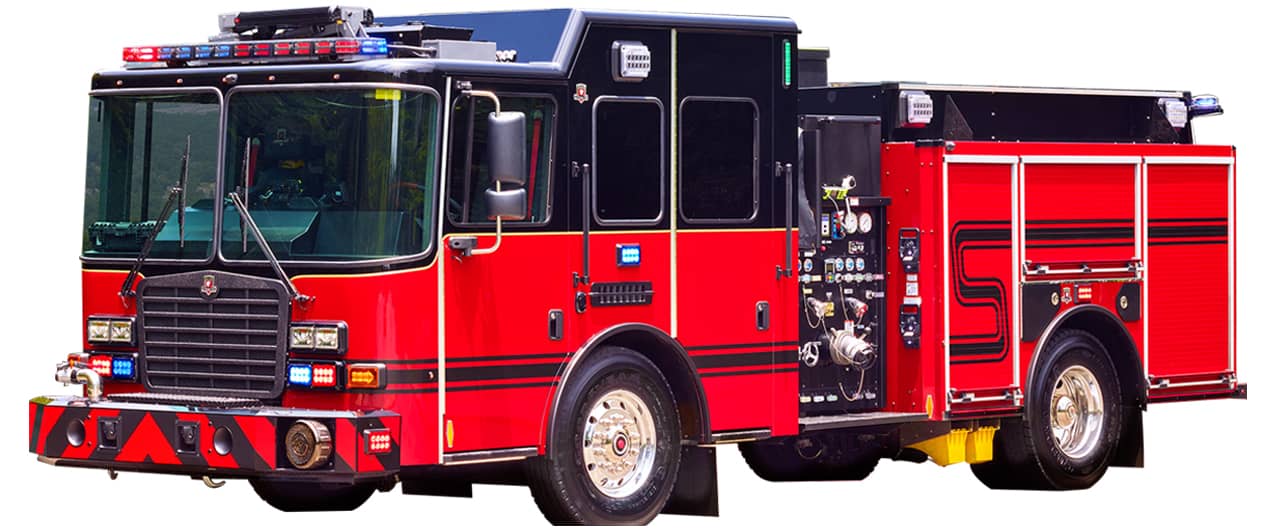

MES Pumper 62 Model with HME 1871 Chassis

Javascript is disabled on your browser.
To view this site, you must enable JavaScript or upgrade to a JavaScript-capable browser.

SPECIFICATIONS

Chassis: HME 1871 MFD 100” Wide
Cummins L9 450 HP Motor
Allison EVS 3000 Transmission
Galvanized Chassis Frame
Q2B Siren on Front Bumper

19k Hendrickson Steertec Front Axle
24k Reyco Granning Rear Axle
Hale Q-Max 1,500 GPM Pump
Lowered Crosslays
Foam System Ready

750 Gal. Water & 30 Gal. Foam Tanks
Lowered Hose Bed
Hale 44” Wide Pump Module
Two-Piece Windshield
Deluxe Shelving Package
*Select Available Upgrades

COMPARTMENTATION
	BEHIND DOOR			CLEAR OPENING
COMPT.	WIDTH	HEIGHT	DEPTH	DOOR WIDTH	DOOR HEIGHT	COMPT. VOLUME
L1 UPPER	36”	33”	12”	27”	55”	8.3 FT³
L1 LOWER	36”	30”	24”	27”	55”	15 FT³
L2	52”	33”	12”	49.5”	24.5”	11.9 FT³
L3 UPPER	43”	33”	12”	39.5”	55”	9.9 FT³
L3 LOWER	43”	30”	24”	39.5”	55”	17.9 FT³
R1	36”	30”	24”	27”	21.5”	15 FT³
R2	43”	30”	24”	39.5”	21.5”	17.9 FT³
RR1	48”	29”	22”	45”	20.5”	17.7 FT³
